Summary

Validating component specifications

Reliable and high performance designs need confidence in component selection and parameters. Testing components for their specifications provides tools for informed decisions:

• Actual performance of components (i.e. how optimistic datasheet values are)
• Sampled variance of component parameter values
• e.g. from a batch of 100 parts, how many meet given specifications
• How components behave outside manufacturer-specified example conditions

Testing

Common tests for components

• Transistors:
• Pulsed power handling capability (safe operating area)
• IV-curves (I_DS vs V_DS vs V_GS etc.)
• Oscillators & resonators:
• Frequency tolerance
• Frequency stability
• Three-point temperature dependence
• DC amplifiers:
• Gain
• Common-mode rejection ratio
• Power supply rejection ratio
• Input / output impendance

Standard testing temperature: stabilized 25°C or elevated 60°C

Other tests can be arranged, please contact us for more information.

Pricing & ordering

Inputs and process

Inputs from customer:

• Type and amount of components
• Customer can supply components if more convenient
• Which parameters to be validated or tests to be performed
• Component-specific details (mounting, heatsinking etc.)

Testing process:

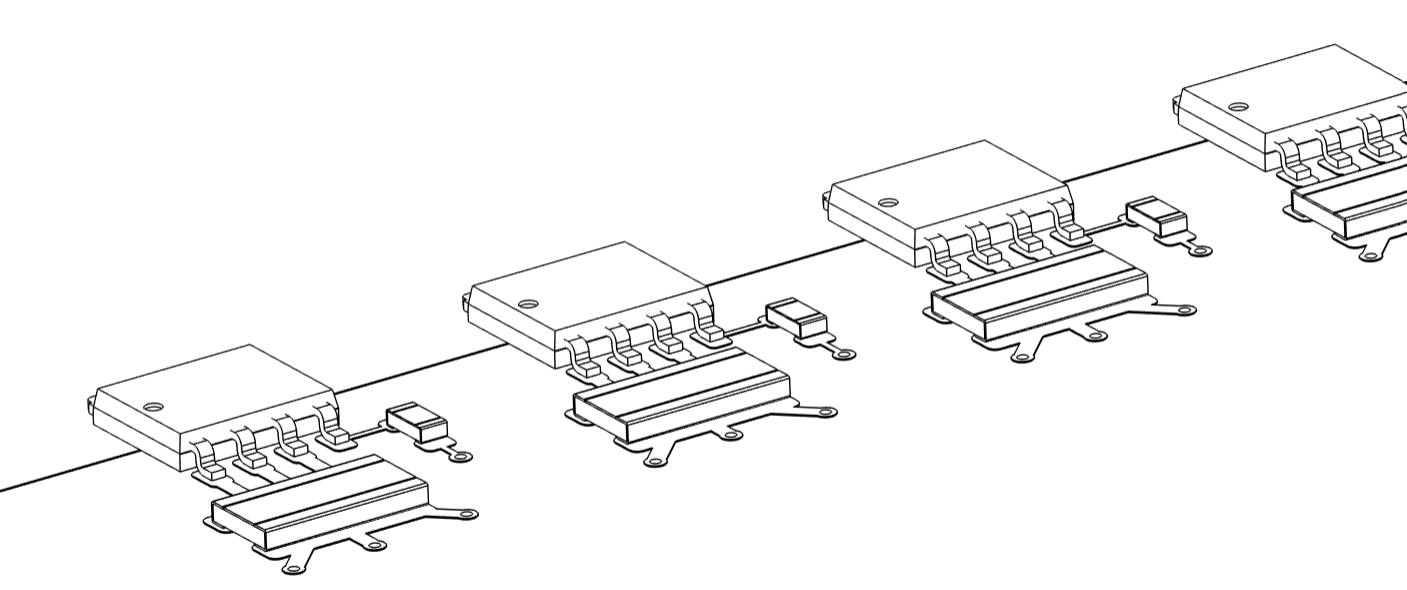

• Test-specific mounting fixtures (PCBs) for components are designed & assembled
• Online real-time tracking of testing process
• A compiled test report and all raw data is provided to the customer
• Estimated timeline:
• Fixture design & assembly: 1-2 weeks
• Testing: 1 week

Pricing:

# components per type	# different components	Price (excl VAT)
1 - 10	1	1570€
10 - 50	1	1830€
50 - 200	1	2830€
200 - 500	1	4825€
1 - 10	3	1699€
10 - 50	3	2497€
50 - 200	3	5490€
200 - 500	3	11475€
1 - 10	5	1856€
10 - 50	5	3280€
50 - 200	5	8625€
200 - 500	5	13750€

If tested components are purchased by Alshain, they will be invoiced separately.

For more information or a quote for your testing, contact us.
